How does a Pet Barrier Dog Fence work?

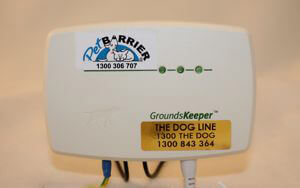

The Transformer and Transmitter

A transformer is plugged into a normal power point and powers the radio transmitter. The DogWatch System features a surge protected transformer which protects the transmitter from energy surges through the main power. The transmitter creates the radio signal that runs through the boundary wire. DogWatch is the only system we found to offer a coded digital FM radio signal. This guarantees that the dog will not be affected by stray radio signals nor will the system be interfered with by other systems in the area.
pet barrier transmitter

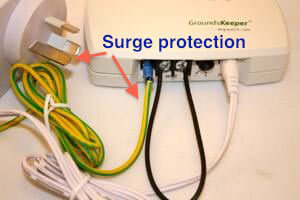

Lightning and Surge Protection (this is not common to all systems)

The boundary wire will then travel through an externally mounted Surge Protection box. A green earthing wire is connected to a ground stake or earthed pipe. DogWatch offers a surge protection warranty that covers it for energy strikes or fusion to the transmitter. This external lightning protection system and guarantee is not offered by other makes or models. During lightning storms the transmitter can be affected by energy running back through the boundary wire or through the main power. An external surge protector prevents fusion to the transmitter, and the warranty covers any damage (provided the earth wire is connected).




The Boundary Wire

The boundary wire travels to the boundary or protected area. The wire must return to the transmitter and form a closed circuit or loop. Smaller areas may only need a small transmitter. The Dogwatch System has a very stable signal that will allow protection of intricate garden bed designs and thin radio signals. Circling the property is usually the easiest and safest solution for your dog. Our customer service team can discuss an on-site installation or provide a map designed for your property. Email an enquiry here.

Radio Dog Fence Wire


The Radio Signal

The radio signal is projected from the wire in a circular fashion. The depth of the signal can be adjusted at the transmitter. This radio signal is harmless, and the wire is safe to touch. The signal has 2 sections; the warning zone (approx. 20%) and the correction zone. DogWatch features a coded digital FM Radio Signal and a block method of correction (the programmable receiver collar will react at its set level as soon as it picks up the radio signal). This combined with the correct training minimises the chance of a run through. The receiver collar also has ‘Fast React’ and will react within 1/8th of a second of entering the zones. (A dog attempting to run at the boundary is deterred quickly)

The Receiver Collar

The receiver is a small box attached to a collar. It has 2 probes that rest against the dog’s skin. The collar will react when it enters the radio signal. In the warning zone, it will give off an audible tone. DogWatch offers ‘Anti Linger’; the receiver will give a static stimulation if it remains in the warning zone for 20 seconds. When the receiver enters the correction zone it will give the dog a static stimulation. DogWatch offers a receiver with programmable levels to suit the needs of your dog’s training requirements. See ‘How does it feel’?




Laying the Wire

The wire can attach easily to a fence or be buried underground to cross driveways. Our customer service team can offer advice on the best approach to your property. Consider the strength and thickness of the wire to ensure a long lasting and secure boundary. We offer a wire 1mm in diameter coated in HDPE that is UV stable and is able to resist moisture. Email an enquiry.
