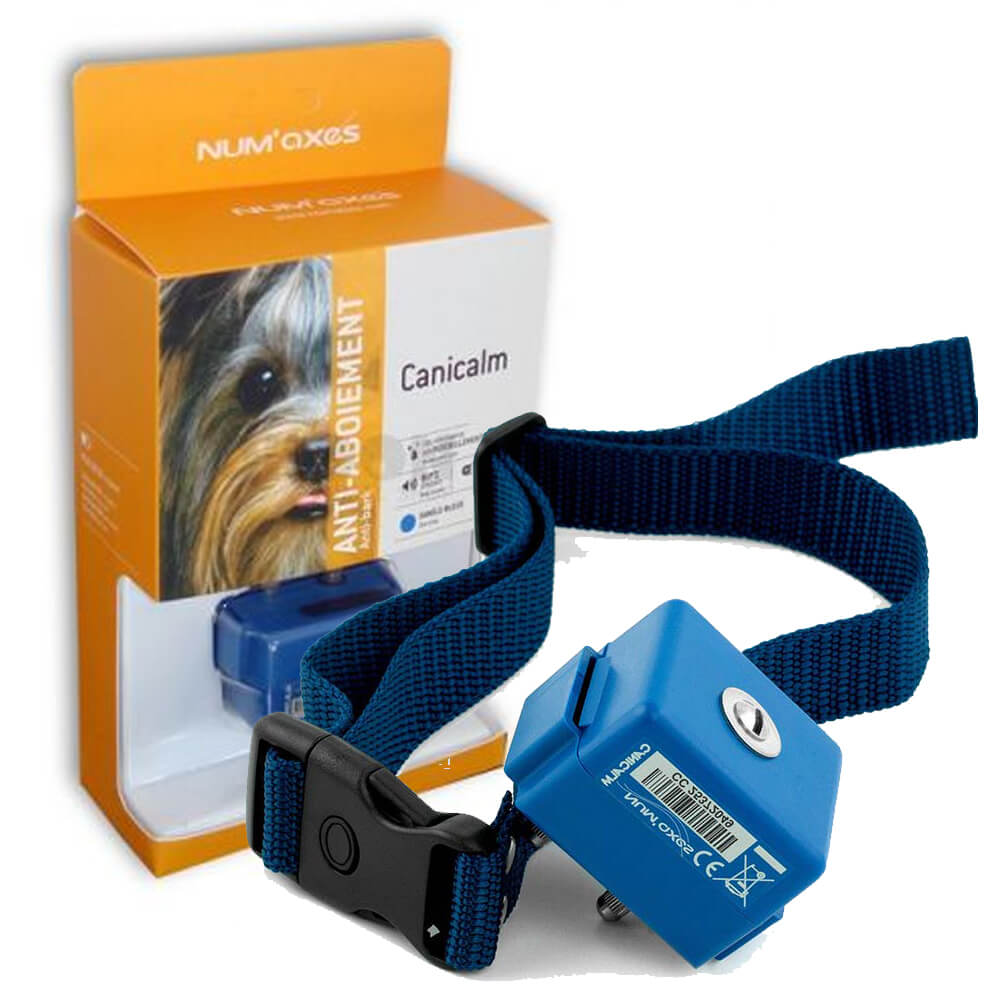

Canicalm Bark Control Collar

The CANICALM Anti Dog Bark Collar is every medium and large breed dog owners bestfriend. This collar is carefully made to suit medium to large dogs with sensitive or stubborn personality. This Bark Control Collar will not just control your dog's nuissance barking but also let them think and understand when they need to bark. This will also keep your dog calm at all times as they would know when a bark is necessary.

Canicalm Basic Bark Collar Features

• • 2 Modes - Beep + Short or Long Stimulation depending on the dogs need
• • Neon Testing Bulb to Test the Collar
• • Beeping Sound to Notify of Low Battery
• • Unnoticeably Lightweight at only 92g
• • Measures 46 x 50 x 36 mm - Small and Compact
• • Lasts up to 6 Months on Regular Use
• • Water Resistant - Non Submersible
• • Adjustable Collar Strap - 20 - 67cm
• • Manufacturers Warranty of 2 Years

What comes in the Canicalm package?

• • Canicalm Bark Collar for Medium and Large dogs
• • Lithium Battery ( 3V CR123A )
• • Adjustable Blue Neck Strap
• • Collar Testing Neon Lamp
• • Long and Short Contact Posts for Long and Short Hair
• • Screwdriver for Replacing Battery and Changing Stimulation Levels
• • Owners Manual

Canicalm Bark Control Collar Feature Details

Interchangeable Mode of Stimulation for Easy Bark Training

The Canicalm Bark Collar features 2 levels of stimulation for better training. Choose between Beep + Short or Beep + Long stimulation and be sure that training with be effective with long lasting results.

Neon Lamp to Test Collar Features

It is crucial to make sure that the collar is functioning properly to achieve best results. With the Neon Lamp you can make sure that the collar is working properly before strapping it on your dog.

Low Battery Beep Indicator for Continuous Training

The collar will beep continuously to indicate that battery is running low. This feature will make sure that you will know when to change the battery when you need to.

Comfortable and Lightweight for your Dog

At only 92 grams including the battery, your dog will focus on responding to the collar than being uneasy with the weight of the collar making the training more effective and friendly.

Compact Size for Precise Training

Comparable size to a regular matchbox. Your dog won't be able to notice the size and weight of this little bark control collar.

6 Month Battery Life with Regular Use

The Canicalm Anti Bark Collar is powered by a Replaceable Lithium Battery that can last up to 6 months of regular use.

Adjustable Neck Strap for your Dog's Comfort

From 20 - 67 cm we can make sure that you get the right fit and comfort for your dog to make the training effective.

Specs

Canicalm Bark Control Collar Fact Sheet

Progressive Correction Mode

Interchangeable Progressive Modes

Water Resistant Casing

Your Dog’s Bark Activation – Vibration

PROGRESSIVE BARK STIMULATION ACTIVATED

When the Canicalm Anti Bark Collar detects the first bark, 6 beep sounds are emitted. And for successive barks, a 2 second beep sound is emitted with stimulations either short or long to alter the behaviour and eliminate only the nuisance barking of your dogs.

2 INTERCHANGEABLE PROGRESSIVE MODES

The Canicalm Anti Dog Bark Collar was designed for large and sensitive dogs with strong personality. A beeper and adjustable noise stimulations are great ways to train your stubborn dogs. The stimulations used for the Canicalm Anti Dog Bark Collar are either: Beep only or Beep only + Progressive stimulations (choose from short or long duration of noise).

NEON LAMP TEST FEATURE

The best way to know that the Num’axes Canicalm Anti Dog Bark collar is fully functional; you must try the Neon Lamp Test first before strapping it in your pet. To guarantee that your dog will receive the best training they deserved.

LONG LASTING LITHIUM BATTERY

Even in regular use, you will have 6 months of usage of Canicalm Anti Dog Bark Collar because of the durable Lithium Battery powered with 3V CR123A. No immediate trips to the store for new battery.

ADJUSTABLE STRAP FOR COMFORTABLE FIT

Canicalm Anti Bark Collar has an adjustable strap design for the comfort of your dogs. It has length of 76cm and width of 25mm that is perfect fit for the neck sizes from 20cm to 67cm that secures the bark collar.

SOUND INDICATOR – BEEPER

A continuous beeping sound will alert you to replace the battery of the Canicalm Anti Dog Bark Collar. So you will never miss it and no interruption in your training with your dog.

WARRANTY FOR 2 YEARS WITH NUM’AXES

To keep you from worry, Num’axes is giving a 2 year warranty for the Canicalm Anti Bark Dog Collar. That is how confident the manufacturer about the product.

Canicalm Bark Control Collar Manual

Important safety and product information

− This device can be used by children ages 8 and above. Under strict supervision, disabled people, sensory and mentally handicapped people or people without knowledge or experience provided may use the product. Sufficient instructions on how to use the device safely are provided to prevent potential risks. Children are not allowed to play with the device. Cleaning and maintenance of the product should be done by the dog owner and shall not be done by children without surveillance.
− Before using the collar, we recommend you to have your dog do an overall physical check up by your trusted pet doctor or vet to ensure he is fit to wear a collar.
− The collar is not suitable with dogs that are not in good physical form (i.e. cardiac problems, epilepsy…) or those having behavioral problems (aggressive dog).
− Check your dog’s neck regularly as repeated rubbing of the contact points against the animal’s skin may cause irritation. If this happens, remove the collar until all signs of skin irritation have disappeared. Never leave the collar more than 8 hours per day on your dog.
− You can start using the collar with 6-month-old puppies that have already received some basic training (“stay”, “sit” or at least “no”).

The CANICALM bark limiter collar will allow you to resolve problems caused by excessive barking

In the factory, the On/Off switch is positioned on Off ; the stimulations switch is positioned on beep sounds only and the sensitivity setting is in the medium position.

Start of Service

CANICALM is supplied with battery.
Lift the n° 2 setting mask (Fig. 1) and turn the On/Off switch to On. A beep sound of 1.5 seconds will be emitted indicating that the collar is operating correctly after a few seconds.

Adjustment and positioning of the collar

Collar adjustment is very important. The strap must be adjusted perfectly so that the contact points are in contact with the skin of the dog.
- The collar is likely to move and repeated friction can irritate the skin of your dog if the strap is too loose. Furthermore, it will not function correctly.
- The dog will have breathing difficulties if the collar is too tight.
Put the cover back on the box. Turn the switch On and after a few seconds, a beep sound of 1 second will be emitted, indicating that the collar is correctly initialized.

• Place the collar at the center of the dog’s neck. You will know if the strap is perfectly adjusted when you can insert two fingers between the strap of your dog’s neck.

Choice of contact points

As you can see in the box, two different series of contact points are provided. For the device to work properly, the length of the contact points must be sufficient to have proper contact with the dog’s skin. If you have a long-haired dog and the short contact points fitted to the collar in the factory are inadequate, replace them with the long ones supplied in the kit. A moderate manual screwing is can also be done but never use keys for them.

How to Operate

At the first bark, a series of six sound beeps will be produced. Another sound beep of 2 seconds will be produced together with a stimulation (short or long as selected) (Fig. 2) if another bark is detected within 30 seconds. Inhibition of any further stimulations is dependent on the absence of any barking within the next 30 seconds.

The stimulation function can be inhibited using the stimulations switch placed under the setting mask n° 1 (Fig. 2). In this case, only the beep sound will be emitted. The barking detection sensitivity setting is a very important preliminary operation (Fig. 2). In fact this setting determines the correct operation of the product. It provides sure detection of any barking and helps avoid unnecessary detection. The setting must therefore be sufficiently sensitive but not too much.

How to know if device operates well

• Make sure the collar is turned off before doing a test to know if device is functioning properly.
• Fix each wire of the neon test lamp under each contact point by unscrewing them lightly and then retightening them so as to pinch the test lamp wires.
• Position the stimulations switch on short or long stimulation then switch the collar on.
• Make a streaked object slide over the bark detection contact point (e.g. sleeve isolated knife with teeth). The test lamp must light on showing the collar is operating correctly.

Replacing the Batteries

If the battery level is low, the collar produces continuous beeps. Turn the On/Off switch to Off. Open the box by removing the screw on the cover, opposite the contact points. Remove the used battery and insert the new one (Lithium 3 V CR 123 A) paying attention to follow polarity indicated on the battery housing.

NUM'AXES advises to use the same type and same brand of batteries as those supplied in your new purchased product. Other brands of batteries may not operate, or may not be completely compatible with your product. You can purchase the suitable batteries from NUM'AXES or from your distributor.

NB: Due to more frequent usage during your dog’s training, your first battery may not last as long as replacement batteries.

Cases of malfunction

Carefully read this manual and make sure the problem is not caused by a weak battery or incorrect settings before concluding the collar is broken. Make sure the contact points are properly tightened on the unit. Check if the collar is properly adjusted and positioned around your dog’s neck.

You can also do a basic troubleshooting to check if device is really malfunctioning. Do a quick hard reboot on the system by removing the battery from its housing. With a metallic tool (e.g. screwdriver, scissors), touch each of the two battery contacts for 2 seconds approximately. Insert the battery again: one beep is produced, indicating that the collar is correctly initialized. If the problem persists, contact your distributor for warranty or visit www.numaxes.com for more information.

Cautions for use

- The system detects only barking from the dog wearing the collar. Nevertheless, although the device is extremely reliable, it can be triggered unintentionally.
- To avoid unintentional triggering, the dog should not wear a medal, metallic collar, or any other kind of collar together with the bark limiter collar.
- Remove the battery from the collar if you are not using it for 3 months or more.
- Never leave a discharged battery in the unit: leakage could damage your CANICALM.

How to Clean

To clean the collar, use simply a soft cloth slightly moistened with water or a neutral detergent. Avoid cleaning the collar with volatile liquids such as solvent or benzene.

How to use CANICALM Bark Limiter

The CANICALM bark limiter collar has several functions: it beeps sounds to detect short and long stimulations and does sensitivity regulation. You must carefully understand how it works. Make sure to adjust the collar before placing it around your dog’s neck.

It is advisable to start with beep sounds without stimulations. In this way the dog can understand the connection between the operation of the device and it barks. The collar releases an unpleasant noise when the dog keeps barking

After a few hours, if the dog continues to bark, add a short stimulation, and if this is not enough, add a long one. The dog will associate this unpleasant sensation with its barking, and will relate it to the fact that it is wearing a collar.

You do not want the dog to stop barking definitively, but to limit the disturbance caused by excessive barking.
