Home > Buy > PetSafe Anti-Bark Spray Collar – PBC22-14130

Write Review

Rate This Prduct. 1 is unlikely & 5 is Great
1   2   3   4  5
Captcha Image
PetSafe Anti-Bark Spray Collar – PBC22-14130PetSafe Anti-Bark Spray Collar – PBC22-14130PetSafe Anti-Bark Spray Collar – PBC22-14130PetSafe Anti-Bark Spray Collar – PBC22-14130
PetSafe Anti-Bark Spray Collar – PBC22-14130

PetSafe Anti-Bark Spray Collar – PBC22-14130

AU $96.00

RRP AU $149.00Save $53.00

Buy Additional Batteries?
Add Extra Citronella Refill?
Add a Dog Treat Pack?

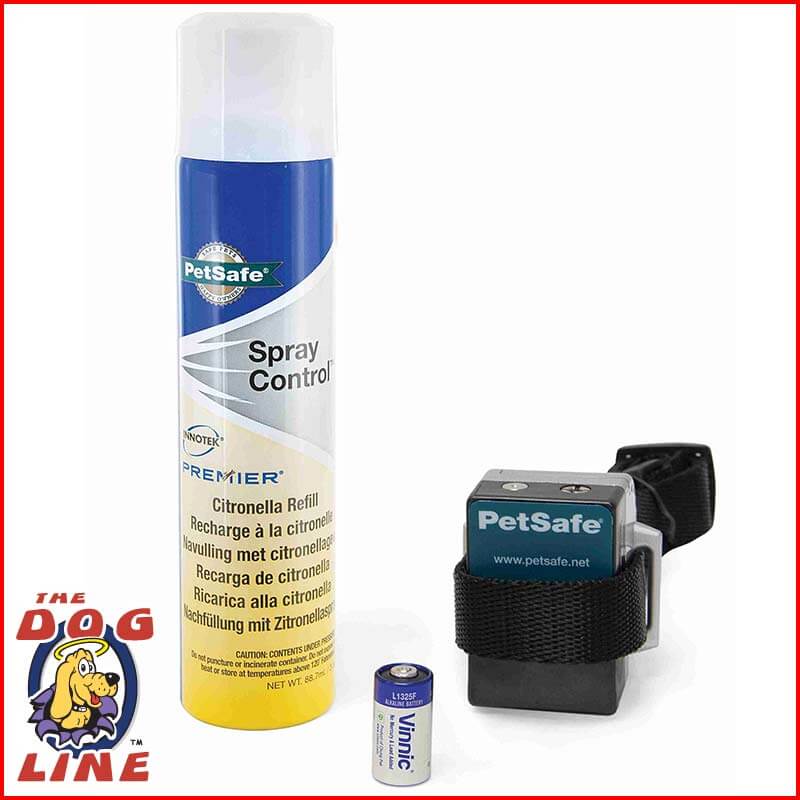

  • PetSafe Anti-Bark Citronella Spray Collar

    The PetSafe Anti-Bark Spray Collar (PBC22-14130) is formerly known as the Innotek Citronella Bark Collar (KIT11122).

    Citronella Spray Collars and refills are not able to be shipped Express Post due to aerosol canister - please select standard shipping

    The PetSafe Citronella Bark Control Collar uses a small measured amount of citronella spray to distract and deter a dog from barking. When the built in microphone detects a bark coming from your dog, it activates and distracts and annoys the dog with the sound, the spray and the smell of the citronella. With proper training and some time, your dog will associate each annoying spray to barking and will learn to reduce or even eliminate nuisance barking.

    The spray is completely harmless and even if your dog is already trained to eliminate nuisance barking, your dog will still be able to bark during emergencies because its instinct will be higher than the level of training.

    Why choose the Anti-Bark Spray Collar?

    • • 3 Year Manufacturer’s Warranty
    • • Best for Dogs from 5kg
    • • Weatherproof
    • • Sound Activated
    • • Citronella Spray Correction
    • • Close to 90% Effectiveness
    • • 25 Sprays Per Refill
    • • Uses Replaceable 6v Alkaline Battery (Lasts up to 6 weeks.)

    What’s in the package?

    • • PetSafe Anti-Bark Spray Collar – PBC22-14130
    • • 6v Alkaline Battery
    • • Adjustable Collar Strap
    • • PetSafe Citronella Refill Canister
    • • Owner’s Manual
    • • Step by Step Training Guide

    Up close with the PetSafe Anti-Bark Spray Collar...


    The PetSafe Anti-Bark Spray Collar is covered by a 3 year manufacturer’s warranty.

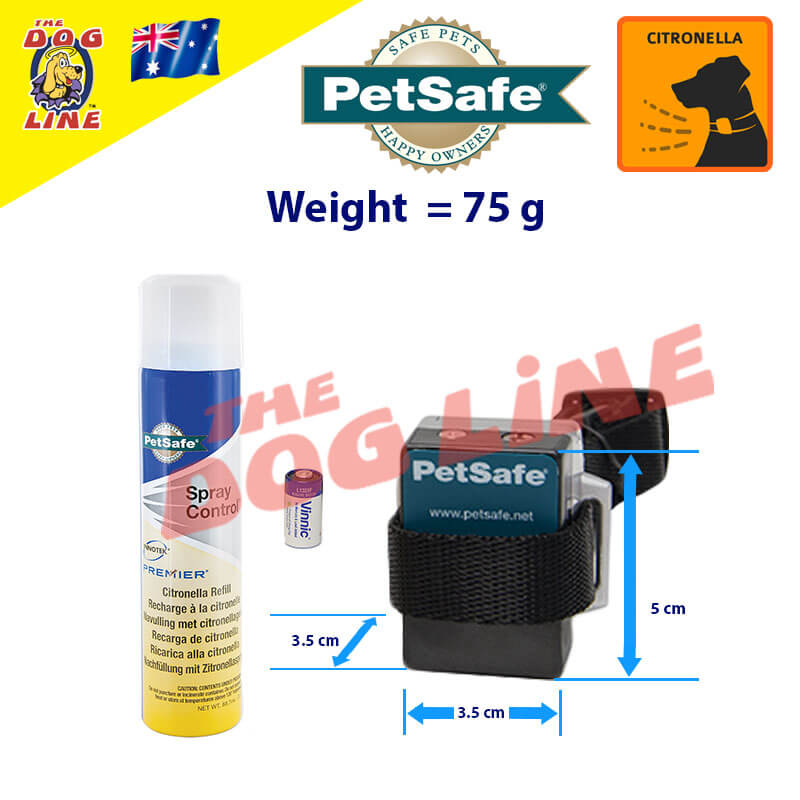

    The unit measures 5.2 x 3.5 x 3.5cm and is designed for small to large dogs, from 5kg.


    The Citronella Bark Control Collar is weatherproof and water resistant to survive most rough handling. It is not submersible.


    A built in microphone listens and waits for a bark coming from your dog’s vocal cords and activates by spraying a measured amount of citronella which is annoying for your dog but totally harmless.


    Research shows that the PetSafe Anti-Bark Spray Collar will reduce nuisance barking by almost 90%.


    Each refill gives the unit 25 sprays which totals to about 250 sprays per refill canister. Your dog’s training is essential to eliminate nuisance barking and have long lasting effects.


    The Citronella Bark Collar uses a fully replaceable 6v Alkaline Battery that can last between 4 to 6 weeks.

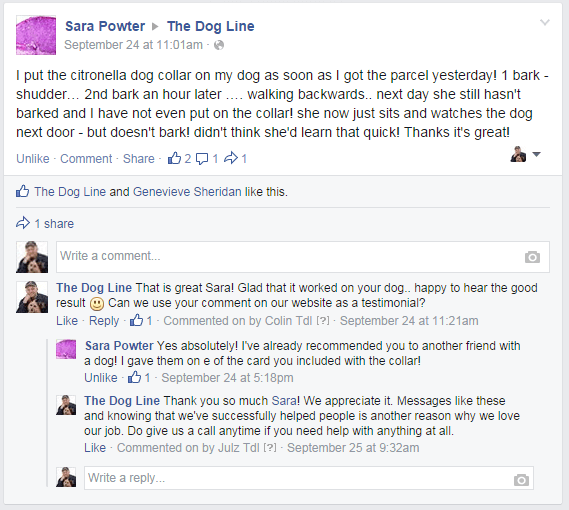

    PetSafe Anti Bark Spray Citronella Bark Collar Testimonial

  • Video

  • Specs



    Correction Modes


    Activation Mode


    Correction Levels



    Weather Resistant Only

    Dog Size

    3.5kgs and Up

    Strap Size

    61 cm

    External Controls



    6V Alkaline Battery RFA-18-11

    Battery Status Indicator


    Bark Collar Weight

    61 g

    Progressive Correction


  • PetSafe Anti-Bark Spray Collar Fact Sheet

    Easy & Reliable Citronella Bark Collar

    Long Battery Life

    Safe Citronella Spray Distraction

    Completely Safe and Harmless


    The kit comes with 1 free canister of citronella spray refill. Each refill gives you 25 sprays which totals to about 250 sprays per canister. The citronella spray is a measured spray each time it activates and is safe for the dog but annoying.


    Research shows that the PetSafe Anti-Bark Spray Collar will reduce nuisance barking by almost 90%. With proper and consistent training, the effectiveness can be increased.


    For rough handling and active dogs, the PetSafe Anti-Bark Citronella Collar is built to be weatherproof and water-resistant. The unit is not submersible.


    Other bark collars activate for no reason and that is bad for training while confusing or scaring your dog at the same time. The built-in microphone ensures that it only activates from the sound of your dog’s bark coming from its vocal cords.


    Depending on the frequency of use, the 6V battery is user-replaceable so you won’t need to take the collar off when you’re running low on battery. Simply pop out the old battery and replace it with a new one.


    The PetSafe Anti-Bark Citronella Spray Collar is perfect for small to large sized dogs from 5kg. It measures 5.2 x 3.5 x 3.5cm. The unit may be a bit big for small dogs. For a small dog alternative, try the PetSafe Elite Little Dog Spray Bark Collar.

  • PetSafe Anti-Bark Spray Collar Manual

    PetSafe Anti-Bark Spray Collar Manual


    Adjusting the collar to the spray device
    1. Remove the keeper from the black collar (1). Insert the collar through the loops (2) of the spray device (3) while making sure that the collar does not block the microphone’s opening (4). Put the keeper back on the collar (5). The curved edge of the keeper should be facing inside.
    2. Feed the loose end of the collar into the first slot of the buckle from back going to the front (6). Then, thread the loose end of the collar through the outside slot from the front going to the back (7). The loose end should now hang from the outside, After which; thread the keeper (8). When you have completed this section, the assembled collar should look illustrated (9).

    Take off all other collars from dog and place the Spray Collar around his neck, making sure the spray valve is directed toward dog’s snout. Adjust the collar to fit like a regular collar. You should be able to insert two fingers (10) between your dog’s neck and the device. We suggest that you check the collar regularly to make sure that it is well fitted.

    Note: Follow the instructions above so that the buckle will be kept in place. If the spray is not properly fitted; it can easily be pulled off from the collar and might lead to the device being lost or damaged. Your dog must first get used to the device before you actually start using it. To get the dog acquainted with the device; we suggest that you make your dog wear the Anti-Bark Spray Collar™ without batteries for 4 to 5 days. At the same time, we also suggest that you remove and replace the collar regularly so dog gets used to the process.


    1. Set the device on a flat surface, with the fill-up valve face up (11).
    2. Shake the spray. Hold the can upside down, then insert the aerosol tip in the fill-up valve – the deepest cavity (12) – then press down firmly for 10 seconds (13). Release pressure and press down for another 10 seconds, then release. Note: If spray is escaping as you attempt to fill the device, increase the downward pressure on the refill can to get a better lock. You cannot overfill the device. When completely filled, it should be enough to last for 18-23 sprays.


    Slide off the battery cover (14) and insert the 6-volt alkaline battery slowly(15), Make sure to put the battery following the polarity signs in accord to label (+ and -). Slide the cover back on (16).
    Turn device on - Before using, test the device first by blowing into the microphone.
    Adjust the Spray Collar onto the dog’s neck. Position the microphone’s opening facing in. Direct the spray valve towards the dog’s snout.
    Your Anti-Bark Spray Collar™ will now activate once your dog barks. Using the device along with constant training will help accelerate and consolidate the desired behavior modification.


    • The collar should be worn only during periods where nuisance barking is observed on the dog. It should not be worn more than eight hours per day.
    • The collar must be filled to maximum capacity before placing it on dog’s neck.
    • Never fill the device while it is on your dog’s neck. It may damage the fill-up valve.
    • So that your dog does not associate you with the spray collar, do not let him see you prepare or refill the device. Always keep your dog away while you prepare the device even replace the battery.
    • It is important that your dog’s hair do not block the spray valve. Try tying a piece of cloth around your dog’s neck, then place the spray collar over it. You may also consider trimming your dog’s hair around the dog’s neck.
    • Remove all other collars and metallic parts or tags. These could create noise that may unnecessarily activate the device.
    • Never fasten or attach a leash (lead) on the Anti-Bark Spray Collar™.
    • Avoid letting your dog wear the device with an empty spray. Make sure it is always full.
    • Turn device off when not in use.
    • The system should only be used with pets over 6 months. If your pet is injured or its mobility is impaired, contact your veterinarian or professional trainer before use.


    1. The Anti-Bark Spray Collar™ is not a toy. Keep it away from the reach of children. It’s sole purpose is to control dog barking; no more- no less.
    2. The Innotek® Anti-Bark Spray Collar™ must only be used with healthy dogs. Otherwise; you need to take your dog to a veterinarian before using the collar.
    3. Although the Anti-Bark Spray Collar™ is splash proof it is NOT completely watertight. Do not let it on the dog during bath time and swimming time.
    4. Always keep the device clean. NEVER immerse device in water. Simply use a dry cloth to wipe away dirt. You may use toothbrush to clean into tight spaces.
    5. Do not leave your device unattended especially where your dog could get a hold of it and damage it by chewing.
    6. Always make sure that the batteries you are using are still adequate for proper operation of the device. The device uses a 6-volt alkaline batteries that readily available from Innotek®. You may also use longer-life lithium batteries if you have.
    7. The microphone is calibrated to detect barking. It will not be activated by outside noise/sounds except from that of the dog wearing it. However, the barking of another dog at a very close range could cause the device to spray unnecessarily.
    8. Never fill the Anti-Bark Spray Collar™ with any other substance. Use only manufacturer provided refill solution Using another solution, as well as opening the device, will void the manufacturer’s warranty in full.
    9. NEVER refill the device through the microphone opening. This would damage the device.
    10. If your dog tries to remove the device, a harness can be used instead of the collar provided in the kit. A harness may be able to provide a better hold of the device.
    11. The hypo-allergenic spray can is a pressurized. Do not attempt to pierce, heat or dispose of it in a fire as it may explode.
    12. Do not expose the device to extreme temperatures; freezing or to temperatures warmer than 45°C. Be particularly careful not to leave the device in a place where it will be directly under the sunlight; e.g window or in a car on a summer day, etc. Never leave the device in a car where temperature can heat up.
    13. Do repair the device by yourself. Unauthorized opening or repair will void the warranty and may cause even more damage to your device.


    To purchase additional accessories for your Innotek® Ant-Bark Spray Bark Collar™, visit our website at to locate a retailer near you and for a listing of Customer Care Center (Centre) telephone numbers in your area.

    Part Number

    Battery - one pack


    Unscented Spray Can


    Bark Control Unit


    Nylon Collar


    Lemon Spray Can


    Citronella Spray Can


Colin's Review

"A tried and tested model over the years... Quite a Large unit to have on smaller dogs so check out how it will look, the Petsafe Elite Little Dog Citronella Spray Bark Collar or the Petsafe Elite Big Dog Citronella Bark Collar may be a better alternative. Citronella Bark Collars a spray to distract your dog from barking."

Product Review's

Rate this product

Stephanie Eustace commented on
5 out of 5 stars
The product has helped our dog in her barking. Since our dog is not as noisy as she was before; we no longer have to use it regulary. Sometimes 2x a month or whenever she starts to get noisy; that's the time we put it back on her and then she mellows down. We remove it again. But she is really quieter now.
Alanna Dare commented on
5 out of 5 stars
i no longer use the spray , she doesnt need it anymore. We only bought it last October and now she's better behaved. Before she barks a lot, now she's more quiet even without the spray on.
Rhonda Vella commented on
5 out of 5 stars
Product is working just fine with my dogs.
Silvia Keeley commented on
5 out of 5 stars
The product works absolutely FINE with my dog.
5 out of 5 stars
We're just very happy with the product. We are still using it for our dog.
